7 watt liverpool ish build

[zambo]

http://i1108.photobucket.com/albums/h40 ... cab010.jpg
http://i1108.photobucket.com/albums/h40 ... log010.jpg

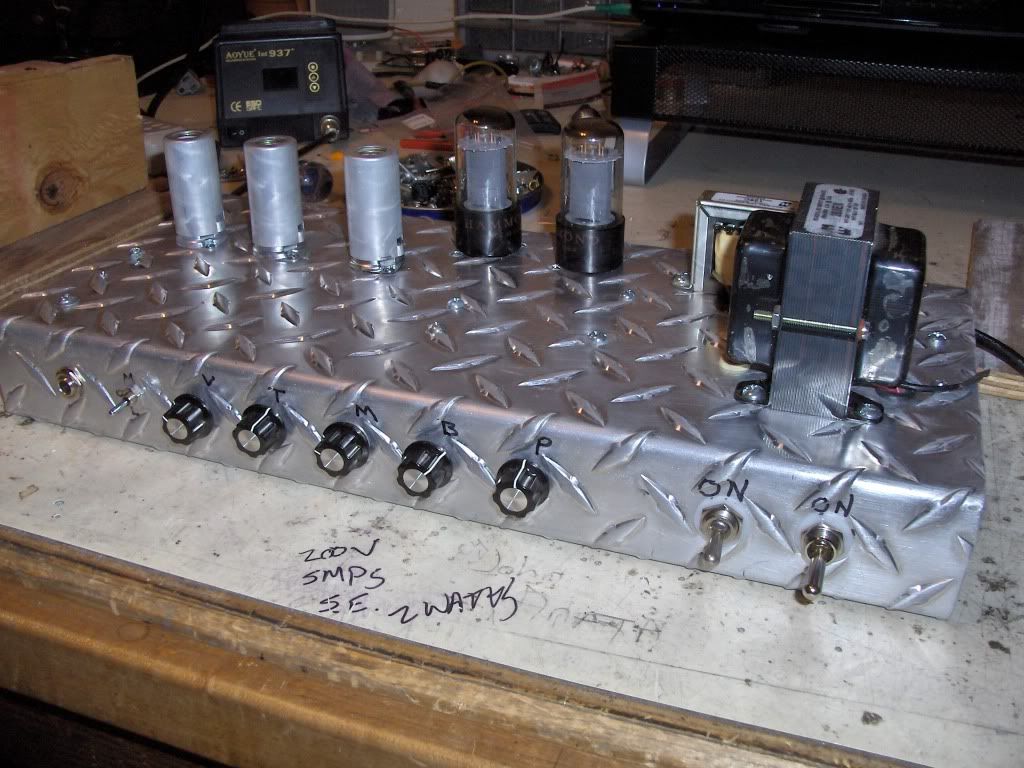

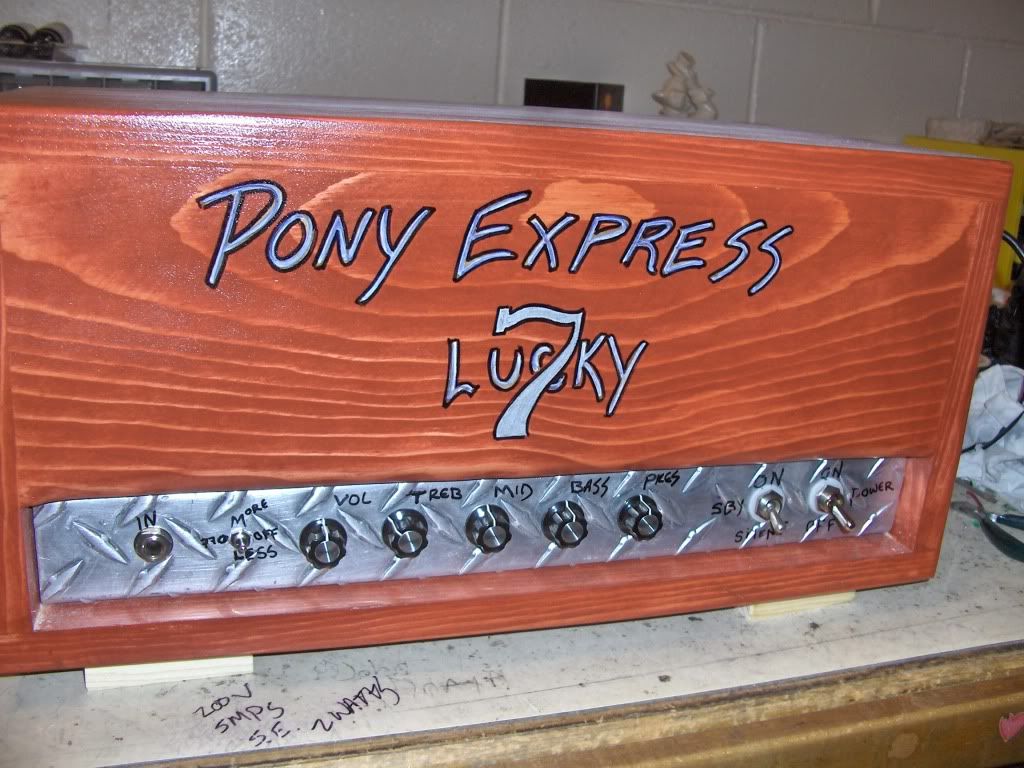

This build is a liverpool type pre with a 7 ( guessing) watt 2 x 6v6 cathode biased power amp. I had a 269ex PT and 125C OT around and wanted to build a smaller caliber amp. Sounds pretty good so far. needs a tweak or two still. 400R shared cathode for the PA.

will try to post a clip soon if anyone is interested.

[Markusv]

Zambo

Nice looking!

Curious- that PT has a max mA of about 80 ain't it?
I assume thats why you estimate the low wattage. Does the PT not get very hot?

Markus

[xtian]

Hey, I like the treadplate chassis! Gut shots, please!

[zambo]

http://i1108.photobucket.com/albums/h40 ... log004.jpg
http://i1108.photobucket.com/albums/h40 ... log006.jpg
http://i1108.photobucket.com/albums/h40 ... log009.jpg

http://i1108.photobucket.com/albums/h40 ... log003.jpg

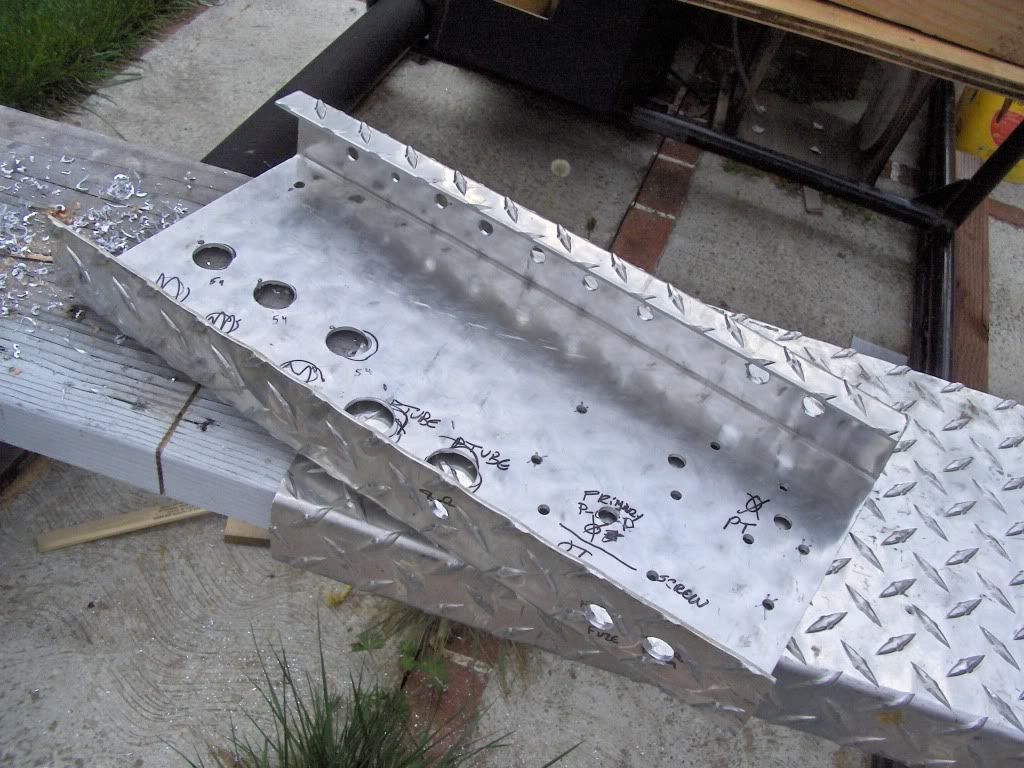

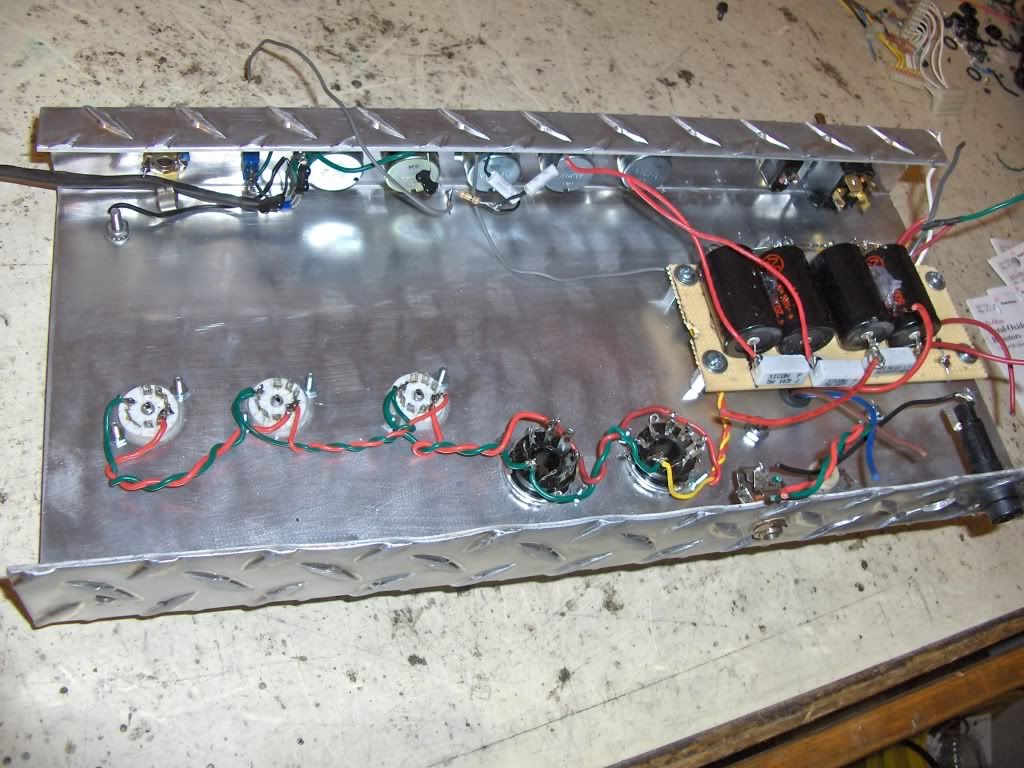

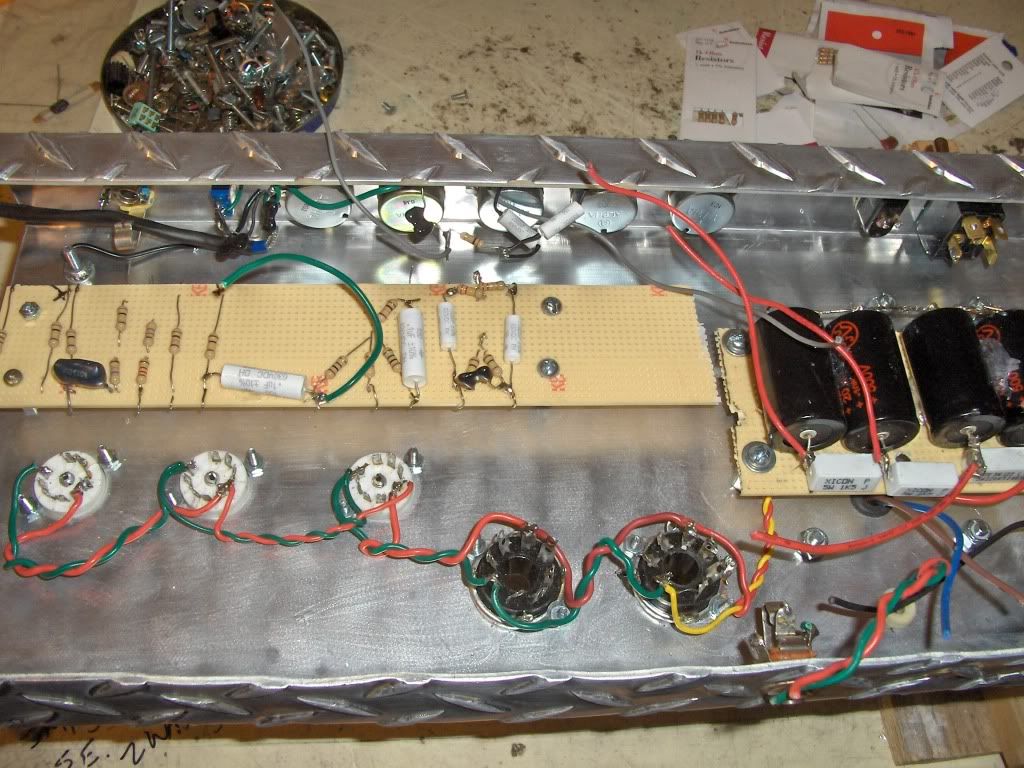

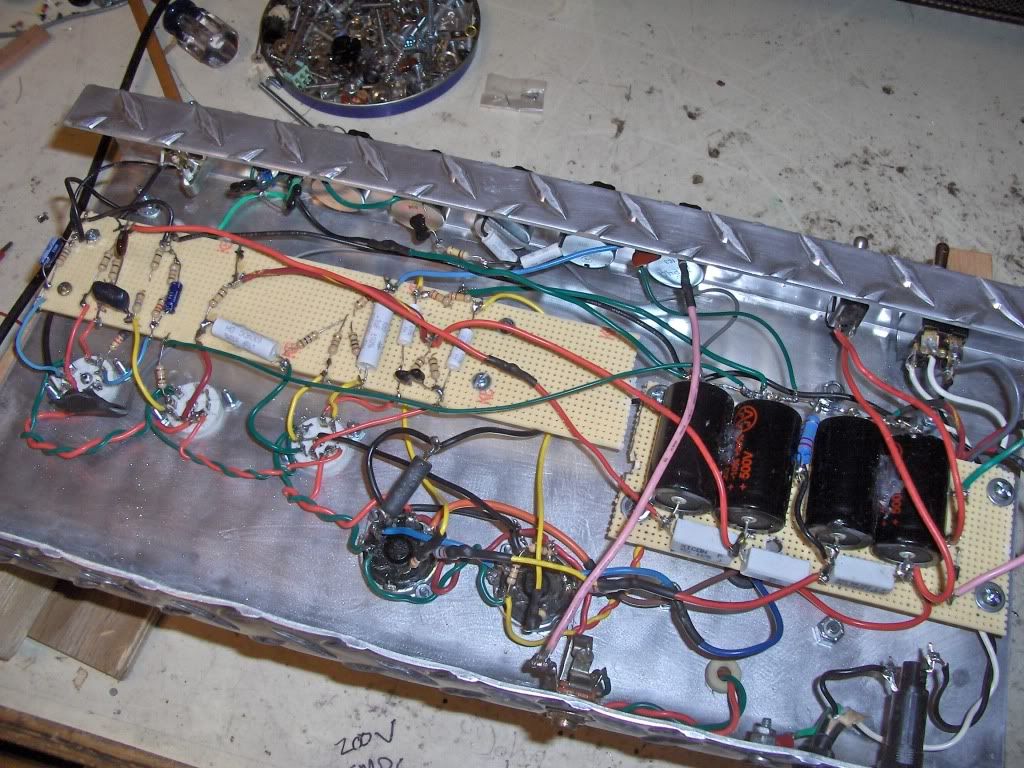

Here are some gut shots. I am working on getting neater I really need to start using eyelet boards or something. Thanks for the kind words. This forum is really cool!

[Markusv]

Hey Z-man re tidiness-
If it works well it's good. Looks like you did without turrets too?
Once it's tweaked and in the cab only you will know

Looking at some old PTP magnatone amps on the web now and the wiring is a rats nest still they sound fantastic

Markus

[zambo]

no turrets.... need supplies....

BTW the Power trans doesnt get hot at all. The added resistance of 11k6 on the primary and cold biased power tubes make it draw around 50 ma for the whole amp (47 actualy). so the iron is all running fairly cool. There is a vid on youtube of a guy that built a 5e3 type with 6k6 and this iron that made me want to try it.

[10thTx]

7 ( guessing) watt 2 x 6v6 cathode biased power amp

Have you tried 6K6 tubes? Your PT is 65ma rating & you might like the way the 6K6 tubes sound.

I just recently recording this with 6K6 tubes:
http://soundclick.com/share.cfm?id=11527276

With respect, 10thtx

[M Fowler]

Zambo,

I like what you have built. The main thing is having fun!

Mark

[zambo]

Thanks guys. I am really having fun! I will try to do a sound clip tomorrow before the amp is givin to its new owner. 7 watts is still really loud by the way. I think it might be fun to develope this amp a little more. It really is a nice volume level. Its still a bit loud for home for most people but it would just kill a small bar with no mic. Its just loud enough to make the speakers push well.

10th TX, Nice clip! Great playing! Every time I try the 6k6 they are to dark for me and seem to lack crispness. I am sure I havent set them up right or I have bad tubes. They arnt matched and came from different sources etc. Yours on the other hand sound sweet! Is that amp around 9 or 10 watts? It sounds sweet.

[zambo]

http://www.youtube.com/watch?v=0BBP0ZYiWRE got a chance to make a sound clip today.

[Colossal]

Nicely done Zambo! You're getting great tones as usual. Are you running those 6V6s in Class A push-pull or single-ended?

[10thTx]

Zambo,

Great job! That sounds great! Thanks for sharing the results.

With respect, 10thtx

[Markusv]

Thanks Zambo

It's got the sound for sure and seems quite touch responsive the way it cleans up
I'd be curious to hear it thru a different mike . The cam mike favors the hi end it seems

Markus

[zambo]
