Desgin Review/Critque

Post by ChrisM »

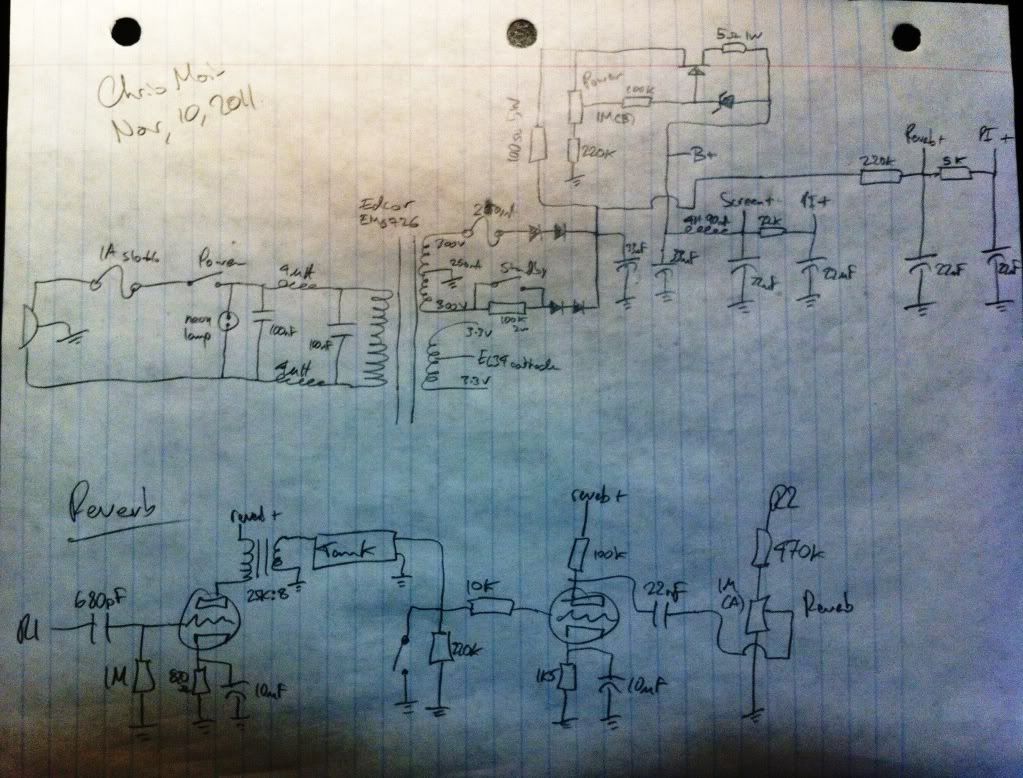

Can anyone check over these schems of a design I came up with. Looking for input on it. The biasing of the stages isn't set in stone right now, still have to work on that.

[IMG:1023:778]http://img.photobucket.com/albums/v610/ ... es/2-1.jpg[/img]

[IMG:1023:790]http://img.photobucket.com/albums/v610/ ... es/1-1.jpg[/img]

Thanks!
Top
User avatar
ChrisM
Posts: 1169
Joined: Wed Oct 22, 2008 11:12 pm
Location: Toronto, Canada.

Re: Desgin Review/Critque

Post by ChrisM »

Thinking of adding a 12AX7 triode before the 5879 and a buffer after the 5879...
Top
10thTx
Posts: 1872
Joined: Sat Dec 30, 2006 1:13 am

Re: Desgin Review/Critque

Post by 10thTx »

Thinking of adding a 12AX7 triode before the 5879 and a buffer after the 5879...
Something like this?

With respect, 10thtx
You do not have the required permissions to view the files attached to this post.
Top
User avatar
ChrisM
Posts: 1169
Joined: Wed Oct 22, 2008 11:12 pm
Location: Toronto, Canada.

Re: Desgin Review/Critque

Post by ChrisM »

Yep!
Probably would use a 12DW7 for the first gain stage and buffer.
Top
