Ampdoc relays for D'lite

[angelodp]

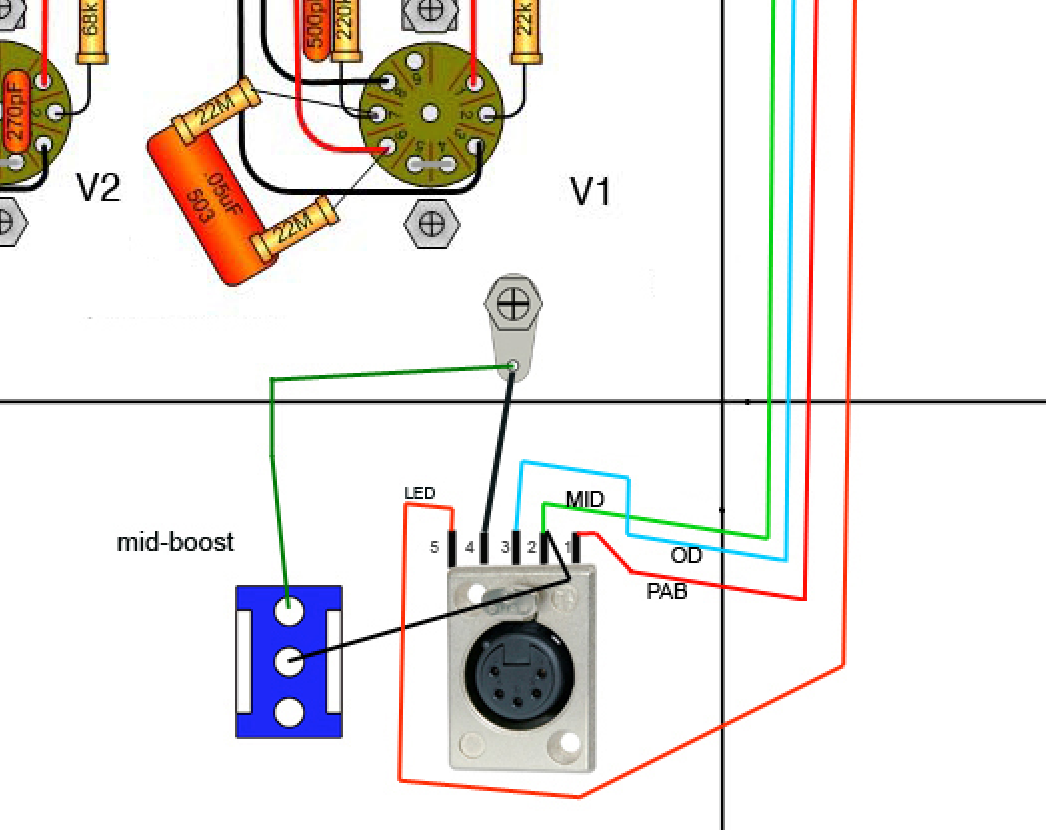

Getting ready to do the install on my relays. Checking to see if the layout looks good. My Dlite is 22/33 with passive loop.

PAB, OD, Mid-boost on a three button pedal.

Midboost on the back panel also has toggle fiunction

Front panel - PAB, OD, Br ( bright only as a toggle )

LED'S for the pedal

ange

[IMG650]http://i260.photobucket.com/albums/ii9/ ... aster6.jpg[/img]
[[IMG975]http://i260.photobucket.com/albums/ii9/ ... cture3.png[/img]
[IMG724]http://i260.photobucket.com/albums/ii9/ ... cture1.png[/img]
[IMG830]http://i260.photobucket.com/albums/ii9/ ... cture5.png[/img]
